Recommended Settings
Please note that other slicer settings might need to be adjusted based on the printed model and the filament requirements
| Materials | Heatbed Temperature | Glue Stick Required? | Upper Glass Cover Plate Removed? |
| PLA/PLA-CF/PLA-GF | 45~60℃ | No | Yes |
| ABS (not for A1 mini) | 90~100℃ | Yes | No |
| PETG/PETG-CF | 60~80℃ | No | No |
| PET-CF (not for A1 mini) | 80~100℃ | No | No |
| TPU 85A/90A | 35~ 45℃ | No | Yes |
| TPU 95A for AMS | 35~ 45 ℃ | No | Yes |
| ASA (not for A1 mini) | 90~100℃ | Yes | No |
| PVA | 45~60℃ | No | Yes |
| PC/PC-CF (not for A1 mini) | 90~110℃ | Yes | No |
| PA/PA-CF/PAHT-CF (not for A1 mini) | 90~110℃ | Yes | No |
Installation Steps for X1 Series/P1 Series/A1/P2S/X2D
Step 1: Align the plate with the fixed points of the platform with the name of the plate facing you
Step 2: Lower the plate and secure to the magnetic platform
Installation Steps for A1 mini
Step 1: Align the plate with the fixed points of the platform with the name of the plate facing you
Step 2: Lower the plate and secure to the magnetic platform

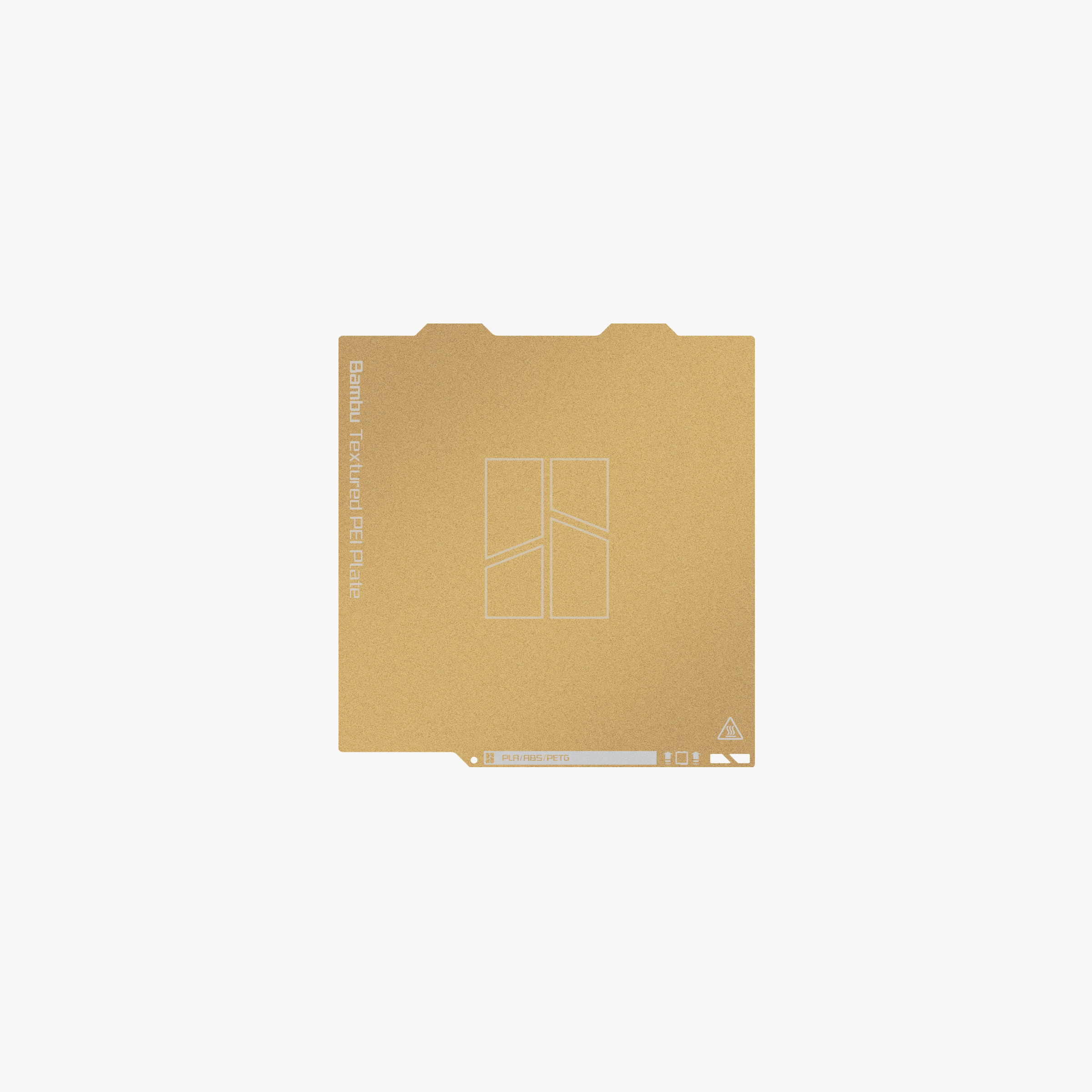

Product Specifications
| Material | PEI Powder Coating + Magnetic Stainless Steel Plate |
| Surface Temperature Resistance | Up to 180℃ |
| Thickness | PEI Powder Coating – 0.075mm Stainless Steel Plate – 0.5mm/0.4mm |
| Usable Print Size | 350*320mm 256*256mm 180*180mm |
| Packaging Size | 408*388*17mm 300*270*17mm 220*190*15mm |
| Packaging Weight | 0.78kg 0.45kg 0.23kg |
FAP033
FAP009
