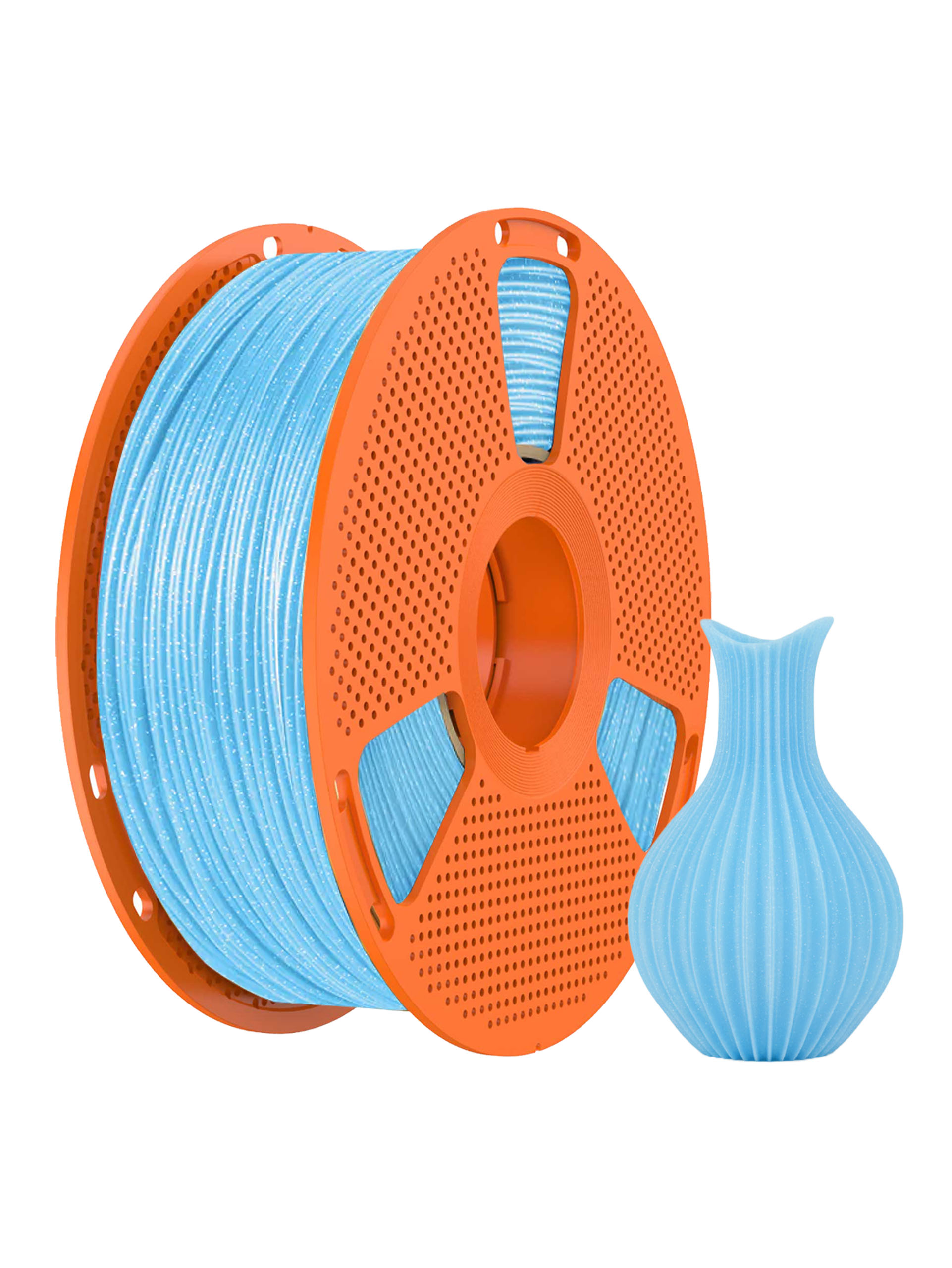

PRINT3DKW PLA Twinkling 3D Printer Filament

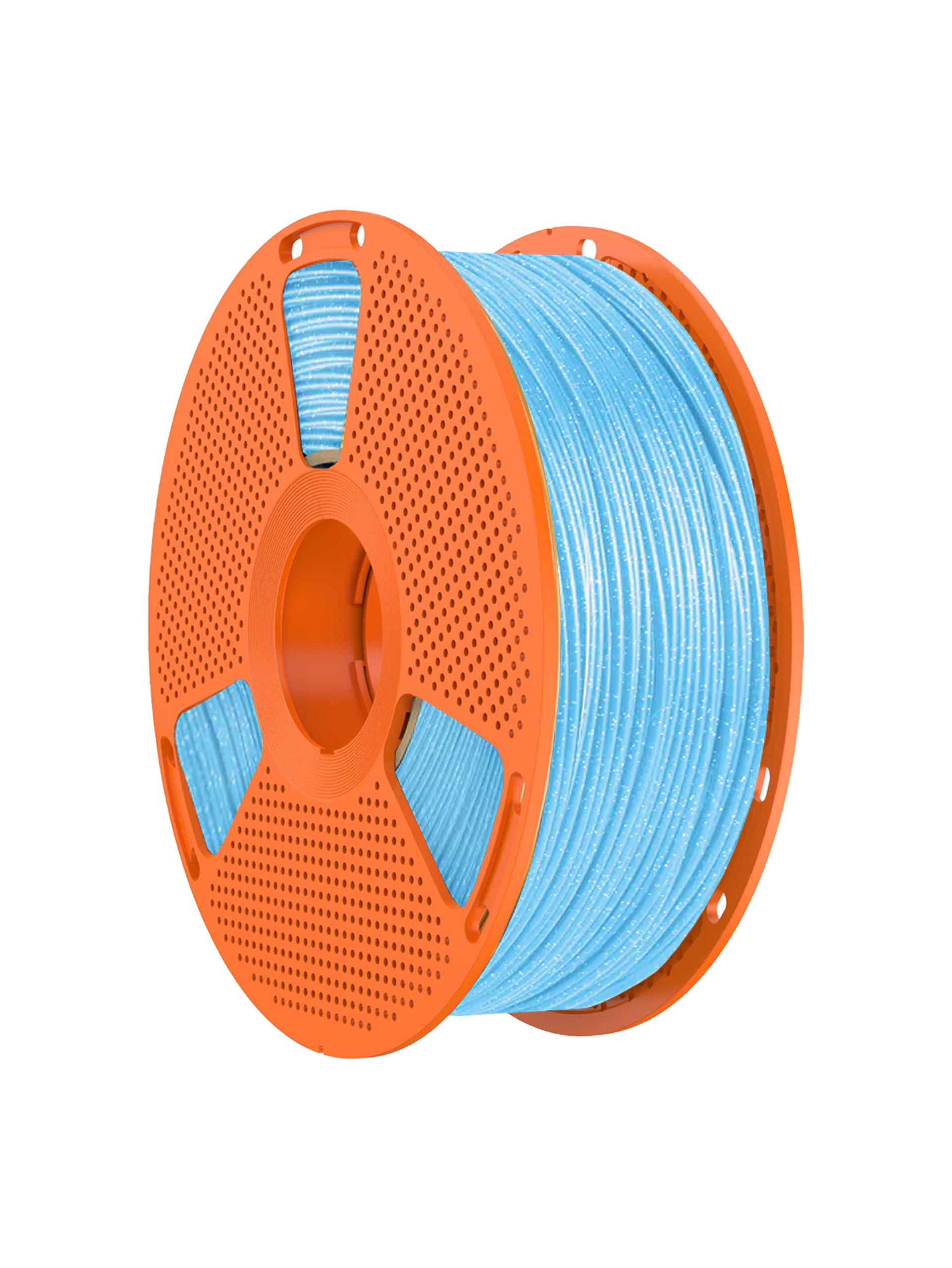

PRINT3DKW PLA Twinkling 3D Printer Filament - Image 2

PRINT3DKW PLA Twinkling 3D Printer Filament

7.500 د.ك

Availability: Only 2 left in stock

Categories 3D Filament, PLA

Description
Reviews (0)

Property	Test Method	Test Condition	S.I. Units	Typical Values
Tensile Strength (X-Y)	ISO 527/2	50mm/min	MPa	50
Young’s Modulus (X-Y)	ISO 527/2	1mm/min	MPa	/
Elongation at break (X-Y)	ISO 527/2	50mm/min	%	24
Flexural Strength (X-Y)	ISO 178	2mm/min	MPa	79
Flexural Modulus (X-Y)	ISO 178	2mm/min	MPa	2155
IZOD Impact Notched (X-Y)	ISO 180	23°C	KJ/m²	3.8
IZOD Impact Notched (Z-X)	ISO 180	23°C	KJ/m²	/
Shore hardness	ISO 868	23°C	HD	82
Heat Deflection (HDT)	ISO 75	0.45MPa	°C	53
Glass Transition (Tg)	ISO 11357-3	10°C/min	°C	62
Melting Point	ISO 11357-3	10°C/min	°C	162
@5% Decomposition Temp.	ISO 11358	20°C/min	°C	≥300
Vicat Softening Temp.	ISO 306	5kg, 50°C/h	°C	/
Mold Shrinkage	ISO 294	23°C	%	/
Coefficient of Thermal Exp.	ISO 11359-2	–	μm/(m·°C)	/
Melt Flow Rate	ISO 1133	190°C/2.16kg	g/10min	6
Density	ISO 1183	23°C	g/cm³	1.26
Volume Resistivity	IEC 60093	–	ohm-cm	1.05×1012
Dielectric Constant	IEC 60250	1kHz	–	3.4
Flammability	UL94	1.5mm	Class	HB

Recommended Printing Parameters

Parameter	Range
Nozzle Print Temp.	Temperature °C	Speed mm/s
	205-215	50-100
	215-245	100-150
Print Platform Temp.	50-60°C
Print Platform Material	Normal
Print Platform Treatment	No processing required
Cool Fan	On ()
Raft Distance	0.4-0.6mm
Retraction Distance	0.8-1.2mm
Retraction Speed	30-40mm/s
Room Temp.	Normal temperature
Support Material	PVA
Drying Temp.	50°C
